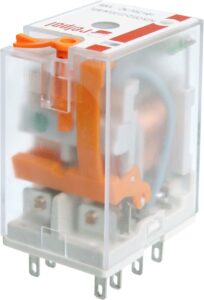

Description
Contact data Number and type of contacts 2 CO Rated / max. switching voltage AC 250 V / 440 V Rated load (capacity) AC1: 12 A / 250 V AC; DC1: 12 A / 24 V DC Coil data Rated voltage AC 50/60 Hz: 6, 12, 24, 42, 48, 60, 80, 110, 115, 120, 127, 220, 230, 240 V; DC: 5, 6, 12, 24, 48, 60, 80, 110, 125, 220 V Rated power consumption AC: 1,6 VA; DC: 0,9 W General data Electrical life resistive AC1 >105 12 A, 250 V AC Mechanical life (cycles) > 2 x 107 Ambient temperature operating AC: -40…+55 oC; DC: -40…+70 oC
