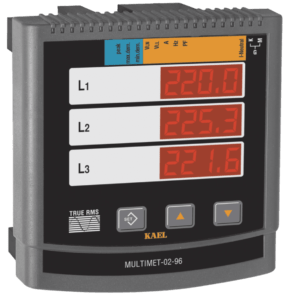

    MULTIMET

    MULTIMET

    MULTIMET

    The device was designed to measure, report and analyse the electrical magnitudes in the 3-phase electric network and both design and software were produced by KAEL engineers. The state-of-the-art technologies were inserted in this device and both menus which facilitate the use of the user and the required features were included. All the information and warnings you need to know concerning the device were described in the user operation manual. Please read this manual carefully before engaging with the device. Please do not take any action before consulting with our company for any matters not clearly understood. Tel: +90 232 877 14 84 (pbx) Fax: +90 232 877 14 49 Factory: Atatürk Mh. 78. Sok. No:10 Ulucak Köyü Kemalpaşa İzmir- TURKIYE

    Categories: , Brand:

    Description

    Connection 3P&4W,3P&3W,ARON Voltage: V1, V2, V3 1-300 Vac;0,5 class Voltage: V12, V23, V31 2-600 Vac; 0,5 class Current:I1,I2,I3,I neutral 2mA-6A;0,5 class Active Power:P1,P2,P3 No Reactive Power:Q1,Q2,Q3 No PF1,PF2,PF3 [+-0.000]-[+-1.000] Demand ve Peak Ok Frequency Ok ALARMS No Relay output: max. 3A/240 Vac No RS485 – MODBUS RTU No Password protection Ok Ambient temperature -5 C….+50 C Storage temperature -20 C….+70 C Display LED Display Current Transformer X/5A Current transformer ratio 1….5000 Voltage transformer ratio 1….4000 Auxiliary supply voltage 230 Vac <4VA Dimensions 96x96x56 mm Quantity in 1 box 12

    Catalog PDF

    Download
