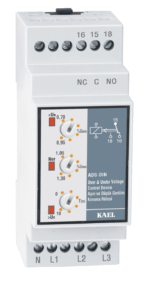

    Over&Under Voltage Protection Relay

    Over&Under Voltage Protection Relay

    Over&Under Voltage Protection Relay

    Microprocessor controlled. Three or single phase relay is used in systems exposed to over or under voltage, such as command, control or compensation systems and protects devices such as condensers, motors, air conditioners and compressors. It is divided into sub-categories depending on the voltage adjustment range, phase sequencing control, on or off start modes.

    SKU: ADG37-DIN Categories: , Brand:

    Description

    Phase Failure Ok Phase Sequnce Control Ok Over Voltage Protection 230V / 285V Under Voltage Protection 155V / 210V ON delay(T_Delay) No OFF delay (T_Reset) 0,1minute / 10minute Neutral Failure Detection Ok System Voltage 380V AC3~(50/60Hz) Umax=(1,30)xUn Umin=(0,70)xUn Contact Ambient Temperature -5C …. + 50C Dimensions Connection Quantity in 1 box 26 Working Mode ON Delay

    Catalog PDF

    Download
