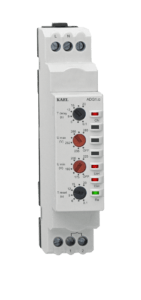

    Over&Under Voltage Protection Relay

    Over&Under Voltage Protection Relay

    Over&Under Voltage Protection Relay

    Rated Voltage (Un) : 230V AC~ Operating Range : (0,70 – 1,30) x Un (Un : nominal voltage) Frequency : 50/60 Hz. Delay Time : 0,1 – 20 sec. Contact current : Max.5 A / 250 Vac Power Consumption : < 2 VA Device Protection Class : IP20 Connector Protection Class: IP00 Ambient Temperature : – 20 °C….+ 60 °C Connection Type : To connection rail in electrical panel Dimensions : 18x90x65 mm

    SKU: ADG1.G Categories: , Brand:

    Description

    Phase Failure Ok Phase Sequnce Control No Over Voltage Protection 230V / 285V Under Voltage Protection 165V / 215V ON delay(T_Delay) 0,1sec / 20sec OFF delay (T_Reset) 0,1sec / 20sec Neutral Failure Detection No System Voltage 220V AC1~(50/60Hz) Umax=(1,30)xUn Umin=(0,70)xUn Contact Ambient Temperature -20C + 60C Dimensions Connection Quantity in 1 box 10 Working Mode A.G.

    Catalog PDF

    Download
