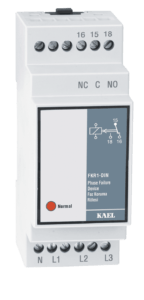

    Phase Protection Relay

    Phase Protection Relay

    Phase Protection Relay

    If all L1, L2, L3 phase voltages are balanced and there is no missing phase; normal LED turns on and the relay energizes its contact. If phase-neutral voltage unbalance value exceeds + 20 %, normal LED turns off and relay de-energizes its contact. When the unbalance returns to normal boundary, normal LED turns on and the relay energizes its contact again.

    SKU: FKR1.DIN Categories: , Brand:

    Description

    Phase failure Ok Voltage Unbalance %20 stable Phase Sequnce Control No Over Voltage Protection No Under Voltage Protection No ON delay(Ts) No OFF delay (Ts) No Neutral failure detection Ok System Voltage 380V AC3~(50/60Hz) Umax=(1,30)xUn Umin=(0,70)xUn Contact Ambient Temperature -5C -+ 50C Dimensions Connection PTC protection No Quantity in 1 box 26

    Catalog PDF

    Download
